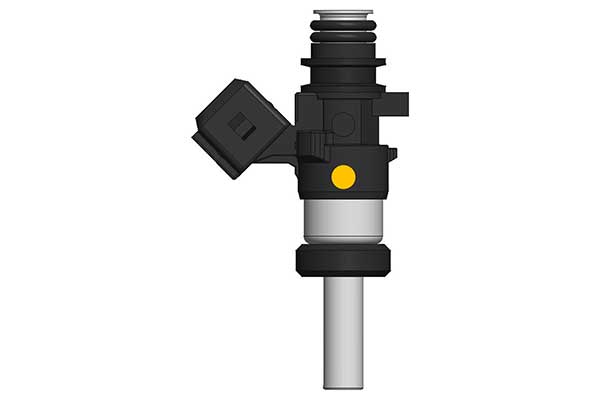

980cc Raceworks Short with Extended Nose – INJ-506-11mm

980cc Raceworks Short with Extended Nose – INJ-506-11mm

Regular price $119.00
Regular price Sale price $119.00
Sale Sold out
Tax included.

Turned down Bosch Injector (Spray Pattern unmodified)
Size: 980cc (92 Lb/hr) @ 3bar and 1100cc (105 Lb/hr) @ 4bar
Impedance: High (12.0 Ohms)
Plug: Bosch Jetronic/Minitimer
Modified for 11mm apps (Subaru BRZ & Toyota 86)
Spray Pattern: Wide Cone
Spray Direction: Straight
Flow variance is +3% / -2% (5% total variance)

*Direct fit applications
Toyota 86
Subaru BRZ

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.


Normally Aspirated Gasoline 185HP 140KW
Forced Inducted Low Boost Gasoline 155HP 115KW
Forced Inducted High Boost Gasoline 165HP 125KW
Normally Aspirated E85 140HP 105KW
Forced Inducted Low Boost E85 110HP 80KW
Forced Inducted High Boost E85 120HP 90KW
