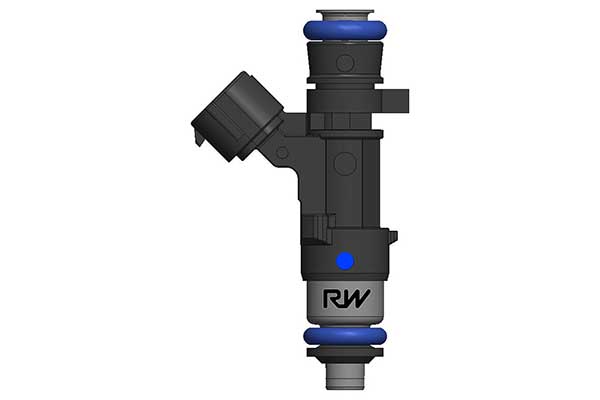

1200cc Raceworks 3/4 Length

Modified/High Flowed Bosch Injector
Size: 1200cc (114 Lb/hr) @ 3bar and 1400cc (133Lb/hr) @ 4bar.
Impedance: High (12 Ohms)
Plug: Denso. Top O-Ring: 14mm.
Ethanol & Methanol Safe
Spray Pattern: Narrow Cone
Spray Direction: Straight



Flow variance is +/- 1.5% (3% Total)

*Direct fit applications
Nissan 350Z V6
Nissan 370Z V6
Nissan GT-R R35 V6 Twin Turbo
Nissan Patrol TB48 I6
Nissan Skyline R34 RB25 I6
Nissan Stagea WGC34/WGNC34 RB25 I6
Subaru Impreza GD/GG H4 N/A

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters. See Injector Upgrade Guide for more details.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR

Normally Aspirated Gasoline	230HP	175KW
Forced Inducted Low Boost Gasoline	195HP	145KW
Forced Inducted High Boost Gasoline	210HP	155KW
Normally Aspirated E85	170HP	125KW
Forced Inducted Low Boost E85	140HP	105KW
Forced Inducted High Boost E85	150HP	115KW
