Raceworks

Fuel – Rails – Supra JZA80 & Aristo 2JZGTE (3.0L)

Fuel – Rails – Supra JZA80 & Aristo 2JZGTE (3.0L)

Regular price $160.00
Regular price Sale price $160.00
Sale Sold out
Tax included.
Brand

Aeroflow

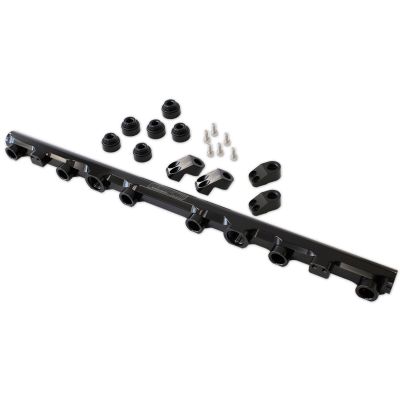

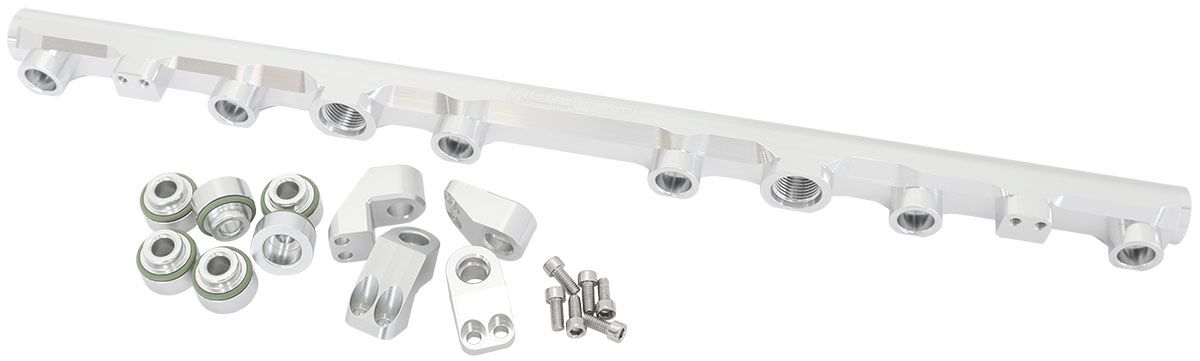

The Aeroflow Performance 2JZ fuel rail is designed to suit all Toyota 2JZ-GTE engines both the VVTi and non-VVTi models. Proper fuel delivery is arguably one of the most critical components for those looking to make all the power they can safely. The 2JZ OEM fuel rails are incredibly restrictive and impede the fuel delivery to the injectors under high fuel pressures. This is problematic for high power 2J engine builds where having consistent fuel pressure is absolutely necessary. Manufactured with a large 18mm internal bore, this fuel rail can support all necessary engine power requirements, especially with three -8ORB ports fitted along the fuel rail. The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used. Designed to suit 14mm fuel injectors in either short or 3/4" length and available in either black or silver anodised.





Raceworks

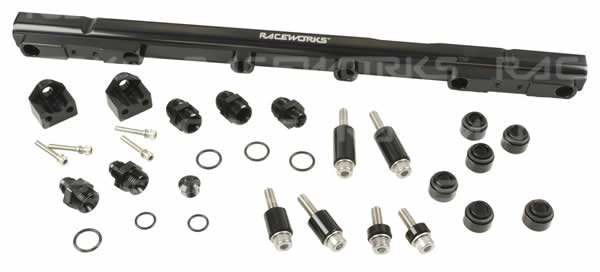

Mounting hardware as pictured. Rail has AN-8 ORB on ends and AN-8 ORB in centre. Included fittings are AN-8 male flare adapters x2, AN-6 male flare adapters x2, AN-8 plug and lower manifold adapters. Use with a full length, 3/4 length or short injector with 14mm O-Rings. This rail does not suit 1JZ



Fitment Information (Factory Intake Manifolds) VVTI – Single Entry VVTI – Twin Entry with Centre Return Non-VVTI – Single Entry Non-VVTI – Twin Entry with Centre Return
Full Length Injector No No Yes No
3/4 Length Injector Yes Yes (*Must use RWF-922-06BK) Yes Yes (*Must use RWF-922-06BK)
Short Injector Yes Yes Yes Yes
