Oil Cooler Adapter -8 ORB Suit GM LS Series Engines

Billet LS Oil Cooler Adapter.

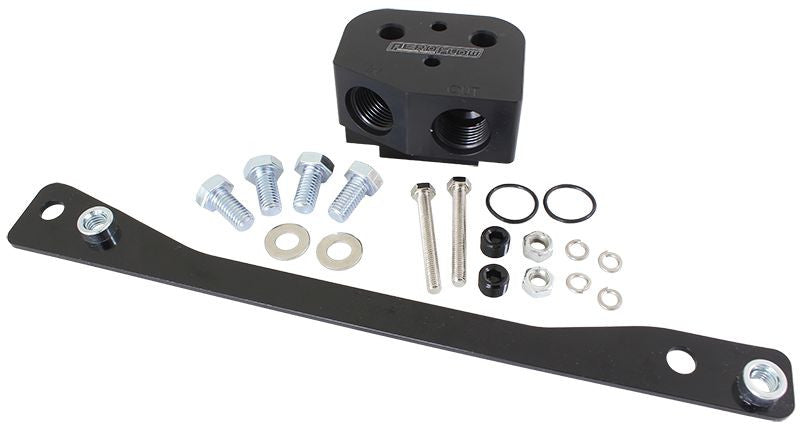

Now you can bolt on oil coolers and redirect your engine oil with these LS oil cooler adapters. AF64-2114BLK is designed to bolt directly in place of the factory bypass cover on front sump LS Chevy engines (VT-VZ Commodore and Pontiac GTO should use extension AF64-2184BLK to clear the engine block) allowing you to run an oil cooler. This adapter features 2x Female -8 ORB ports and 2x 1/8" NPT ports for running temp or pressure gauges or an oil feed line for a turbocharger or supercharger. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Included with this kit is a billet bracket designed to help relocate the power steering line into a better location to allow room for this adapter.

For rear sump applications use part number AF64-2084BLK
