Maradyne Champion Series Fan - 10"

  • Sale
  • Regular price $159.00

or make 4 interest-free payments of $39.75 fortnightly with Afterpay More Info

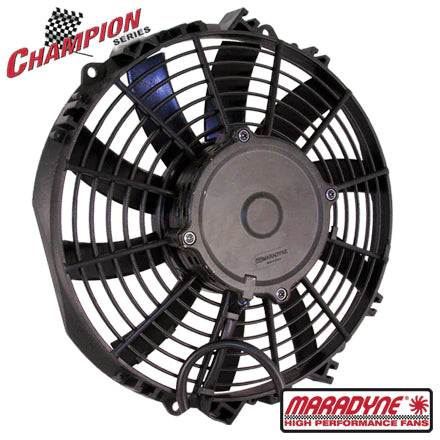

Maradyne Champion Series Fan - 10" Skew 24V - 950 CFM - 130W

The M103K-24 (EF8907) 24v 10" Maradyne Champion Series Fan features a reversible blade design which is rated up to 950cfm / 1614m3/h in the standard puller configuration.

The Maradyne Champion Series EF8907 10" Thermo Fan features a fully-sealed 130W motor (IP68) of superior quality and is backed with a 12-month manufacturers warranty (see below).

M103K-24 10THERMO FAN DETAILS
Fan Model # M103K-24
Fan Series Champion Series
Voltage 24V
Motor 130W
Flow Type Puller or Pusher (ships as puller)
Blade Diam. 10 inch (254mm)
Blade Type Skew
Shroud Type Finger Guard
Amps 7.9
CFM 950
M3/H 1614
Included in Box
  • Thermo Fan
  • Wiring Pigtail
  • 4 x Mounting Feet
  • 1 x Nylon Tie Kit

M103K-24 10" THERMO FAN DIMENSIONS
A 269mm / 10.59"
B 284.5mm / 11.2"
C 228.3mm / 8.99"
D 323mm / 12.71"
E 63mm / 2.48"
Maradyne M103K-DS 10" Reversible Thermo Fan
