Maradyne Champion Series Fan - 12"

Maradyne Champion Series Fan - 12"

Regular price $259.00
Regular price Sale price $259.00
Sale Sold out
Tax included.

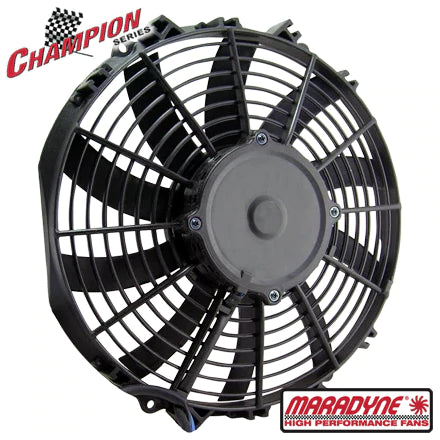

Maradyne Champion Series Fan - 12" / 305mm Skew 12V - 1548 CFM - 225W

The M122K (EF8912) 12V, 12" Maradyne Champion Series Fan features a reversible blade design which is rated up to 1548cfm / 2630m3/h in the standard puller configuration.

The Maradyne Champion Series EF8912 12" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 12-month manufacturers warranty (see below).

M122K 12THERMO FAN DETAILS
Fan Model # M122K
Fan Series Champion Series
Voltage 12V
Motor 225W
Flow Type Puller or Pusher (ships as puller)
Blade Diam. 12 inch (305mm)
Blade Type Skew
Shroud Type Finger Guard
Amps 13.3
CFM 1548
M3/H 2630
Included in Box
  • Thermo Fan
  • Wiring Pigtail
  • 4 x Mounting Feet

M122K 12" THERMO FAN DIMENSIONS
A 318mm / 12.52"
B 336mm / 13.23"
C 264.7mm / 10.42"
D 374.4mm / 14.74"
E 81mm / 3.19"
Maradyne M122K-DS Fan
