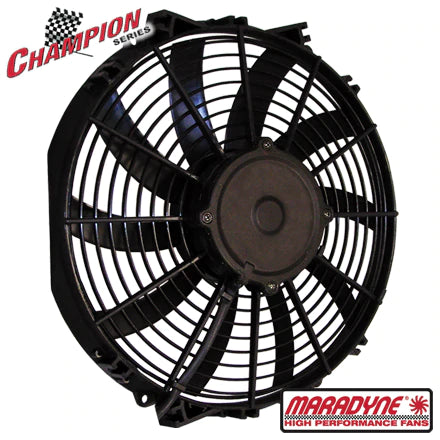

Maradyne Champion Series Fan - 14" / 356mm Skew 12V - 2135 CFM - 225W
The M142K (EF8916) 12v 14" Maradyne Champion Series Fan features a reversible blade design which is rated up to 2135cfm / 3627m3/h in the standard puller configuration.
The Maradyne Champion Series EF8916 14" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 12-month manufacturers warranty (see below).
|
M142K 14" 225w THERMO FAN DETAILS |
| Fan Model # |
M142K |
| Fan Series |
Champion Series
|
| Voltage |
12V |
| Motor |
225W |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
14 inch (355mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
17.2 |
| CFM |
2135 |
| M3/H |
3627
|
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
|
|
M142K 14" 225w THERMO FAN DIMENSIONS |
| A |
367mm / 14.45" |
| B |
382mm / 15.04"
|
| C |
297.2mm / 11.7" |
| D |
420.4mm / 16.55"
|
| E |
81mm / 3.19" |
 |
