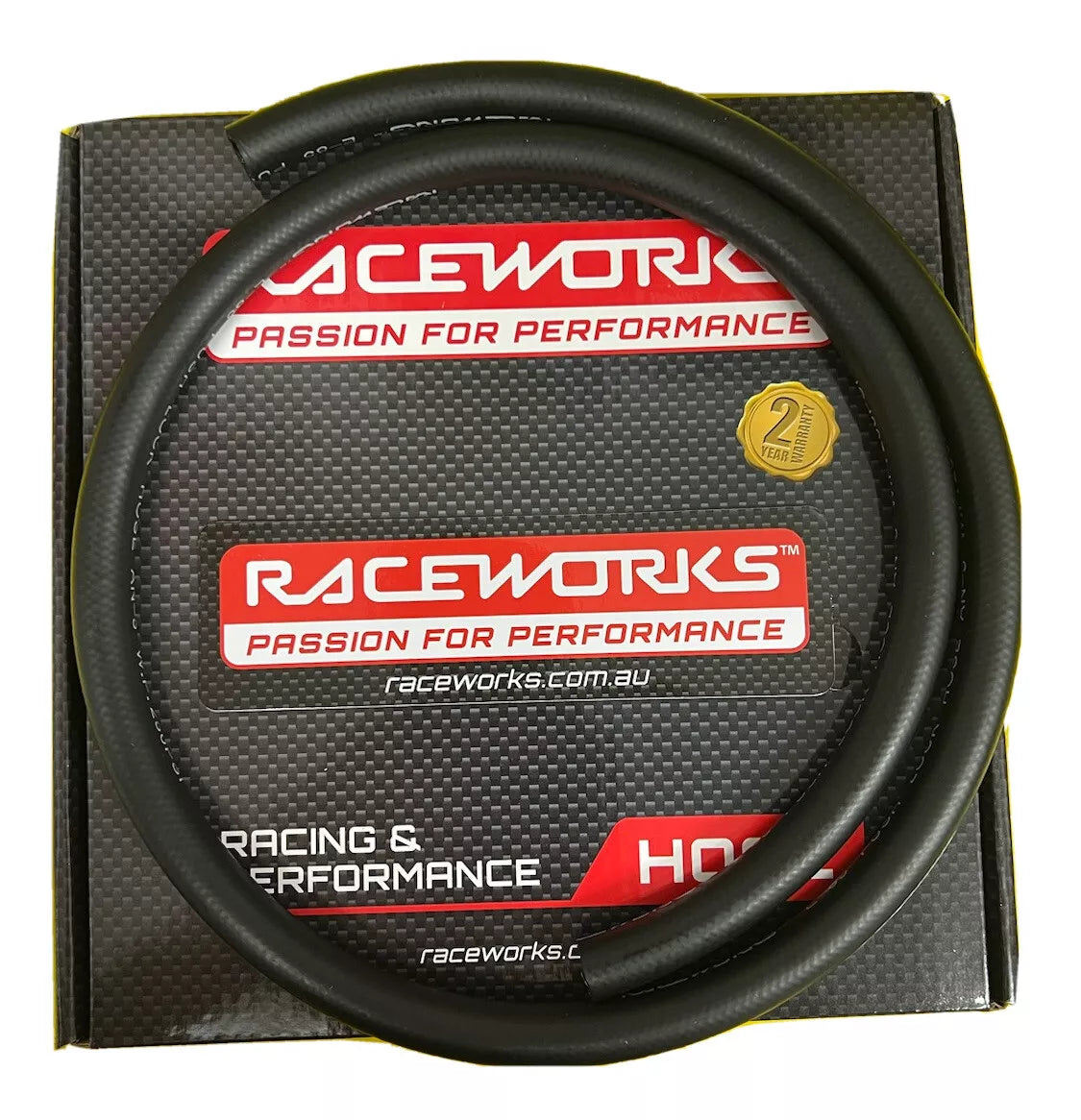

Raceworks 400 Series Push Lok Rubber Hose

  • Sale
  • Regular price $21.99

or make 4 interest-free payments of $5.49 fortnightly with Afterpay More Info


Raceworks 400 Series Rubber Hose has an inner liner of Nitrile which is reinforced with braid made from high tensile synthetic textile cord to give it extra strength. Raceworks 400 Series rubber hose is safe for use with E85, methanol, oils, lubricants and coolant. Recommended for use on low pressure systems/temperature applications. If using in high pressure or temperature above 70°C we recommend securing hose ends with a clamp. All Raceworks products come with a 2 year warranty.
Due to new additives found in some premium pump fuels, we do not currently recommend using this hose with ULP in submerged applications.

Temperature Range: -40°C to 100°C, Rated up to 250psi

Hose Clamps and Crimping pliers available for AN-5 and AN-6
Length 1m Part No. AN Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Burst Pressure
RWH-400-04-1M -4 1/4" 6.4mm 29/64" 11.6mm 250psi
RWH-400-05-1M -5 5/16" 7.9mm 9/16" 14.2mm 250psi
RWH-400-06-1M -6 3/8” 9.5mm 5/8” 15.8mm 250psi
RWH-400-08-1M -8 1/2” 12.7mm 3/4” 19.1mm 250psi
RWH-400-10-1M -10 5/8” 15.8mm 15/16" 22.9mm 250psi
RWH-400-12-1M -12 3/4” 19.1mm 1 1/32” 26.2mm 250psi
Length 3m Part No. AN Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Burst Pressure
RWH-400-04-3M -4 1/4" 6.4mm 29/64" 11.6mm 250psi
RWH-400-05-3M -5 5/16" 7.9mm 9/16" 14.2mm 250psi
RWH-400-06-3M -6 3/8” 9.5mm 5/8” 15.8mm 250psi
RWH-400-08-3M -8 1/2” 12.7mm 3/4” 19.1mm 250psi
RWH-400-10-3M -10 5/8” 15.8mm 15/16" 22.9mm 250psi
RWH-400-12-3M -12 3/4” 19.1mm 1 1/32” 26.2mm 250psi
Length 5m Part No. AN Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Burst Pressure
RWH-400-04-5M -4 1/4" 6.4mm 29/64" 11.6mm 250psi
RWH-400-05-5M -5 5/16" 7.9mm 9/16" 14.2mm 250psi
RWH-400-06-5M -6 3/8” 9.5mm 5/8” 15.8mm 250psi
RWH-400-08-5M -8 1/2” 12.7mm 3/4” 19.1mm 250psi
RWH-400-10-5M -10 5/8” 15.8mm 15/16" 22.9mm 250psi
RWH-400-12-5M -12 3/4” 19.1mm 1 1/32” 26.2mm 250psi
Length 10m Part No. AN Inside DIA. Inch Inside DIA. MM Outside DIA. Inch Outside DIA. MM Burst Pressure
RWH-400-04-10M -4 1/4" 6.4mm 29/64" 11.6mm 250psi
RWH-400-05-10M -5 5/16" 7.9mm 9/16" 14.2mm 250psi
RWH-400-06-10M -6 3/8” 9.5mm 5/8” 15.8mm 250psi
RWH-400-08-10M -8 1/2” 12.7mm 3/4” 19.1mm 250psi
RWH-400-10-10M -10 5/8” 15.8mm 15/16" 22.9mm 250psi
RWH-400-12-10M -12 3/4” 19.1mm 1 1/32” 26.2mm 250psi
