Raceworks

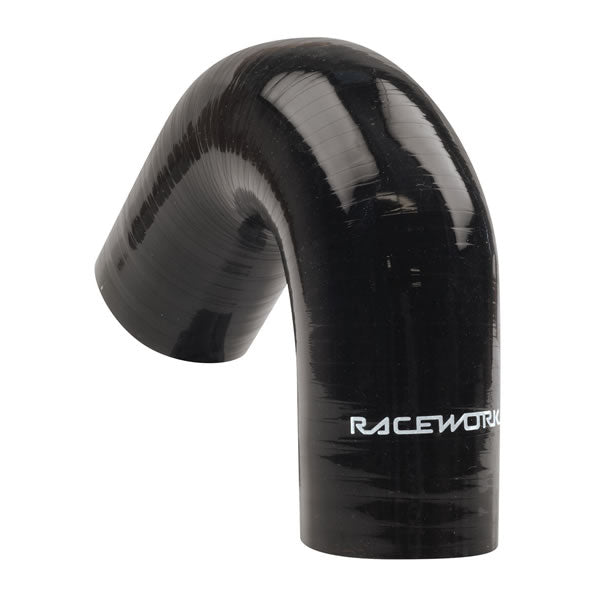

Silicone Hose 135 Degree Elbow
Silicone Hose 135 Degree Elbow
Regular price
$43.99
Regular price
Sale price
$43.99
Unit price
/
per
Tax included.
Couldn't load pickup availability
All Raceworks hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester.

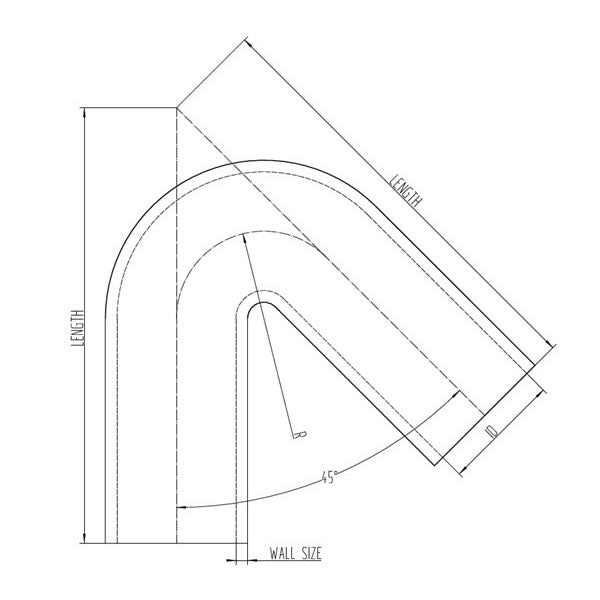

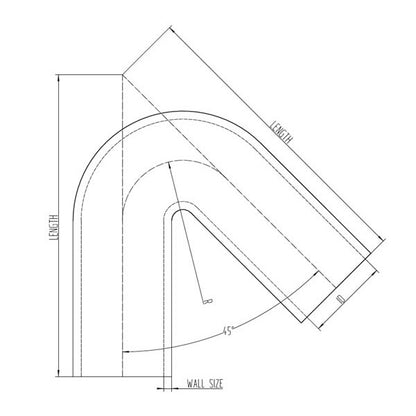

| Dia. Imp. | Dia. Metric | Part # Blue | Part # Black | Lth mm | Min. Burst Pres. | Bend Radius |
|---|---|---|---|---|---|---|
| 2.00” | 51mm | SHE-135-200BE | SHE-135-200BK | 187×187mm | 218 PSI | 45.5mm |
| 2.25” | 57mm | SHE-135-225BE | SHE-135-225BK | 187×187mm | 174 PSI | 48.5mm |
| 2.50” | 63mm | SHE-135-250BE | SHE-135-250BK | 187×187mm | 174 PSI | 51.5mm |
| 2.75” | 70mm | SHE-135-275BE | SHE-135-275BK | 187×187mm | 174 PSI | 55mm |
| 3.00” | 76mm | SHE-135-300BE | SHE-135-300BK | 187×187mm | 174 PSI | 58mm |
| 3.25” | 82mm | SHE-135-325BE | SHE-135-325BK | 187×187mm | 174 PSI | 61mm |
| 3.50” | 89mm | SHE-135-350BE | SHE-135-350BK | 187×187mm | 145 PSI | 64.5mm |
| 3.75” | 95mm | SHE-135-375BE | SHE-135-375BK | 187×187mm | 145 PSI | 67.5mm |
| 4.00” | 102mm | SHE-135-400BE | SHE-135-400BK | 187×187mm | 145 PSI | 71mm |
